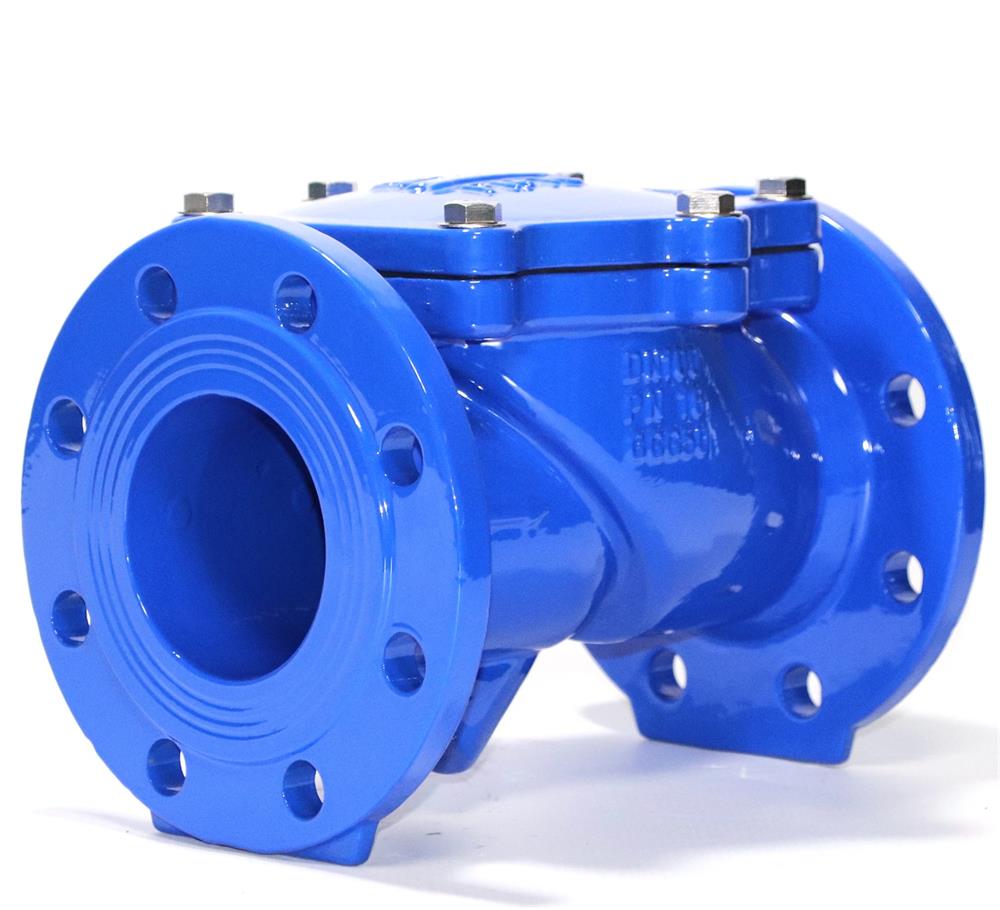

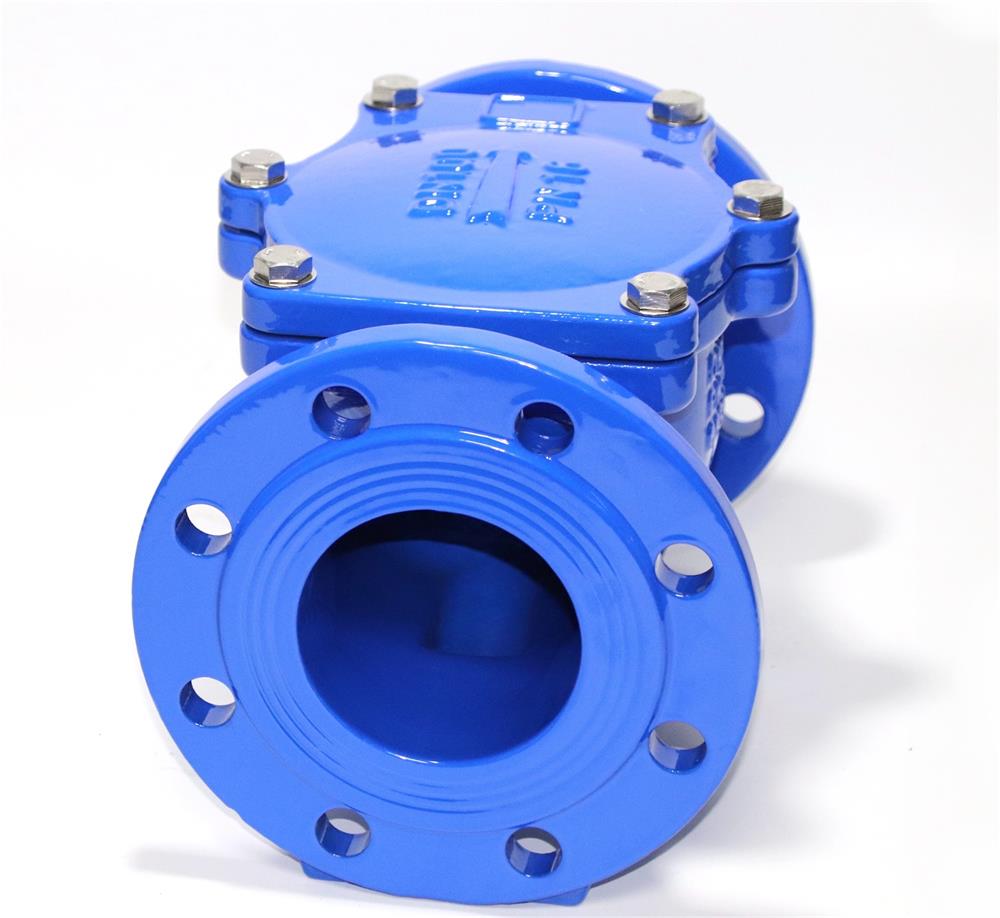

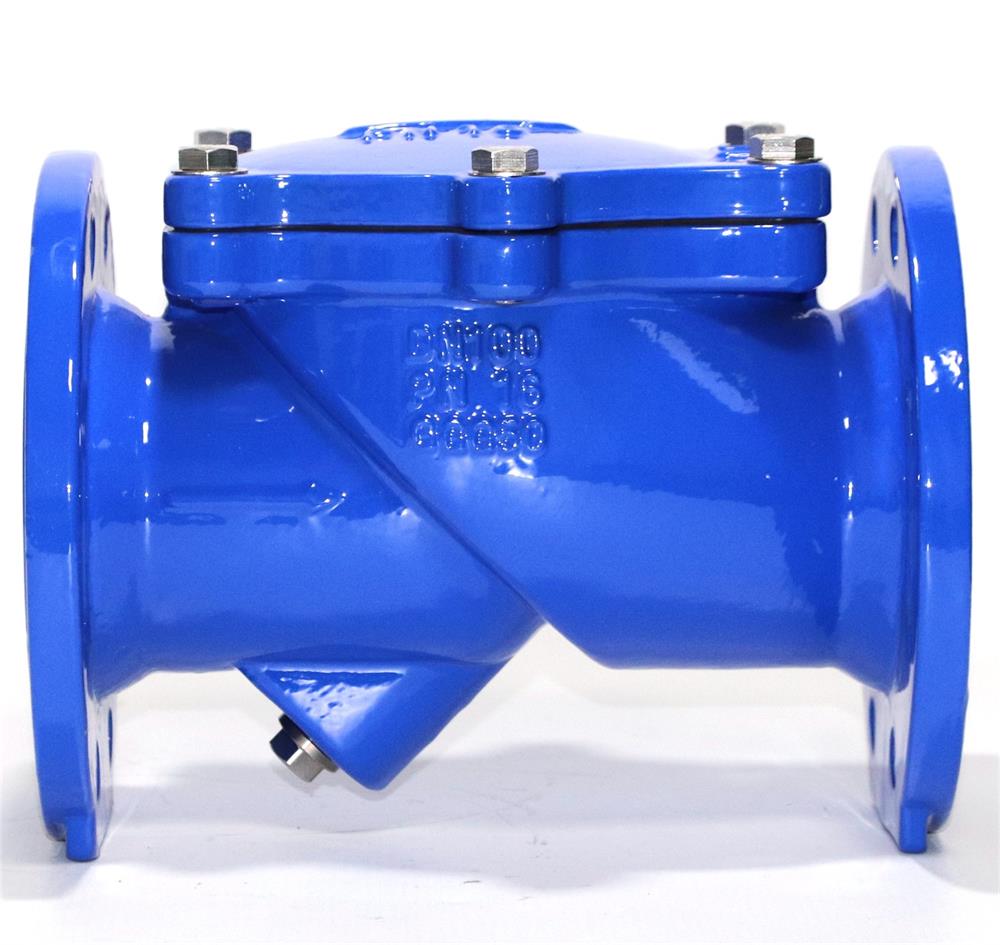

F6 Rubber Disc Check Valve

F6 Rubber Disc Check Valve

The H44X rubber valve is mainly composed of three main parts: body, cover and rubber valve. The rubber valve is made of steel plate, steel bar and reinforced nylon cloth as the substrate, and the outer layer is covered with rubber.
2024 New Style Design Gate Valves Cheap Cost2024 New Valves for European Market Cheap factory priceCopper gland gate valve



Features:F6 / BS5163 Rubber Disc Check Valve

Rubber Disc Check Valve range:

Production    Size:2”-24”  DN50-DN600mm

Pressure Range:PN10,PN16

F6 Rubber Disc Check Valve Standard:

Design   Standard:GB/BS/DIN F6

Face   to    Face:GB/BS/DIN F6

Flange   Standard: GB/EN1092

Testing   Standard:GB/T 13927

Rubber Disc Check Valve main material of parts:

Body:Ductile Iron

Bonnet: Ductile Iron

Sealing ring:EPDM

Disc:EPDM
