ANSI ball valve
 |
 |
 |
 |
 |
 |
ASNI ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.It, the opening and closing (ball) is driven by the stem and revolves around the axis . The sealing performance is good，the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable,The switch is light.
ANSI Ball Valve range:
Production Size:1/2"~10".DN15~DN250
Pressure:125LB,150LB

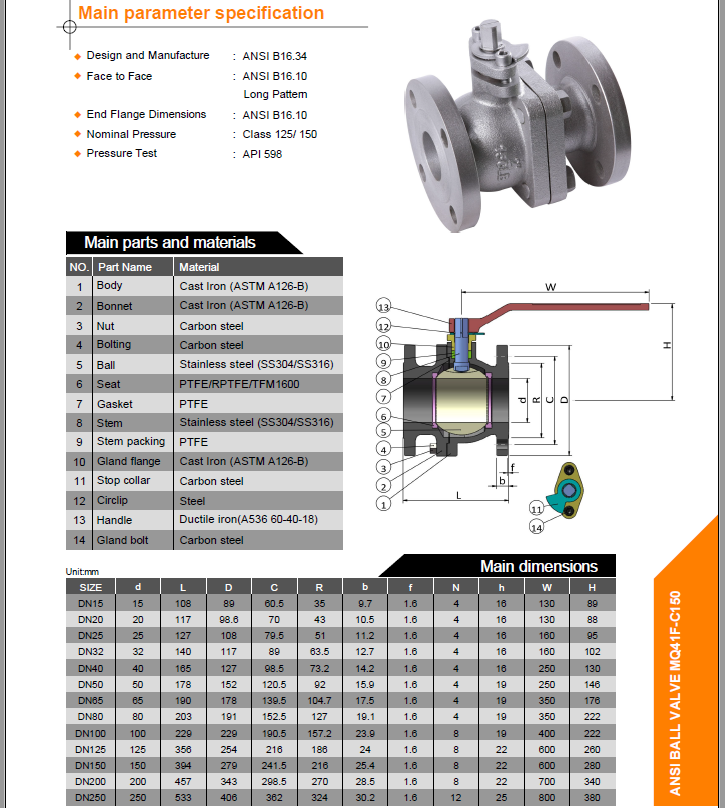

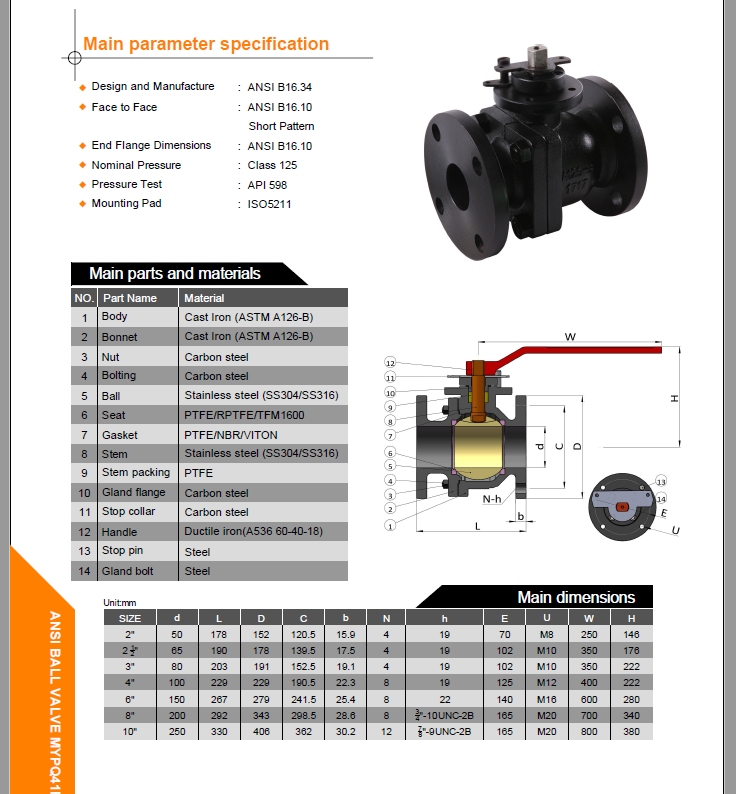

ANSI Ball Valve standard
Design Standard:ANSI B16.34
Face to Face:ASME B16.10
Flange Standard:ASME B16.10
Testing Standard:API 598
ANSI Ball Valve main material of parts:
Body:ASTM A126B
Bonnet:ASTM A126B
Stem:2Cr13/SS304/SS316/Carbon Steel
Ball:SS304,SS316
Gasket:PTFE
Seat:PTFE,RPTFE
Stem Packing:PTFE
Handle:ASTM A536 65-45-12
