DIN globe valve can be used to control the flow of various types of fluid, such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive medium.

The opening and closing part of Globe valve is a plug disc, and the valve flap of globe valve moves along the center line of the valve seat in a straight line.

DIN Globe Valve range:

Production    Size:1/2"~10".DN15~DN250

Pressure:PN16

DIN Globe Valve standard:

Design   Standard:DIN 3356

Face   to    Face:DIN 3202 F1

Flange   Standard:DIN 2533 PN16

Testing   Standard:ISO 5208

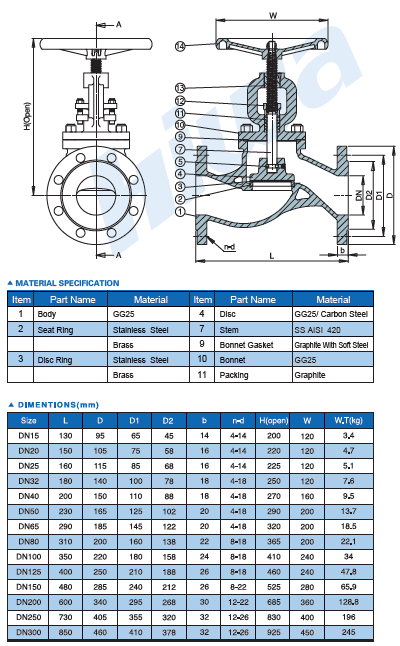

DIN Globe Valve Material of parts:

Body:GG25

Bonnet:GG25

Stem:2Cr13,SS304,SS316,Carbon Steel

Stem Nut:brass,Ductile iron

Disc:GG25

Seat:ASTM B62 C83600,2Cr13,Brass

Hand wheel:ASTM A536 65-45-12

Packing:Graphite
